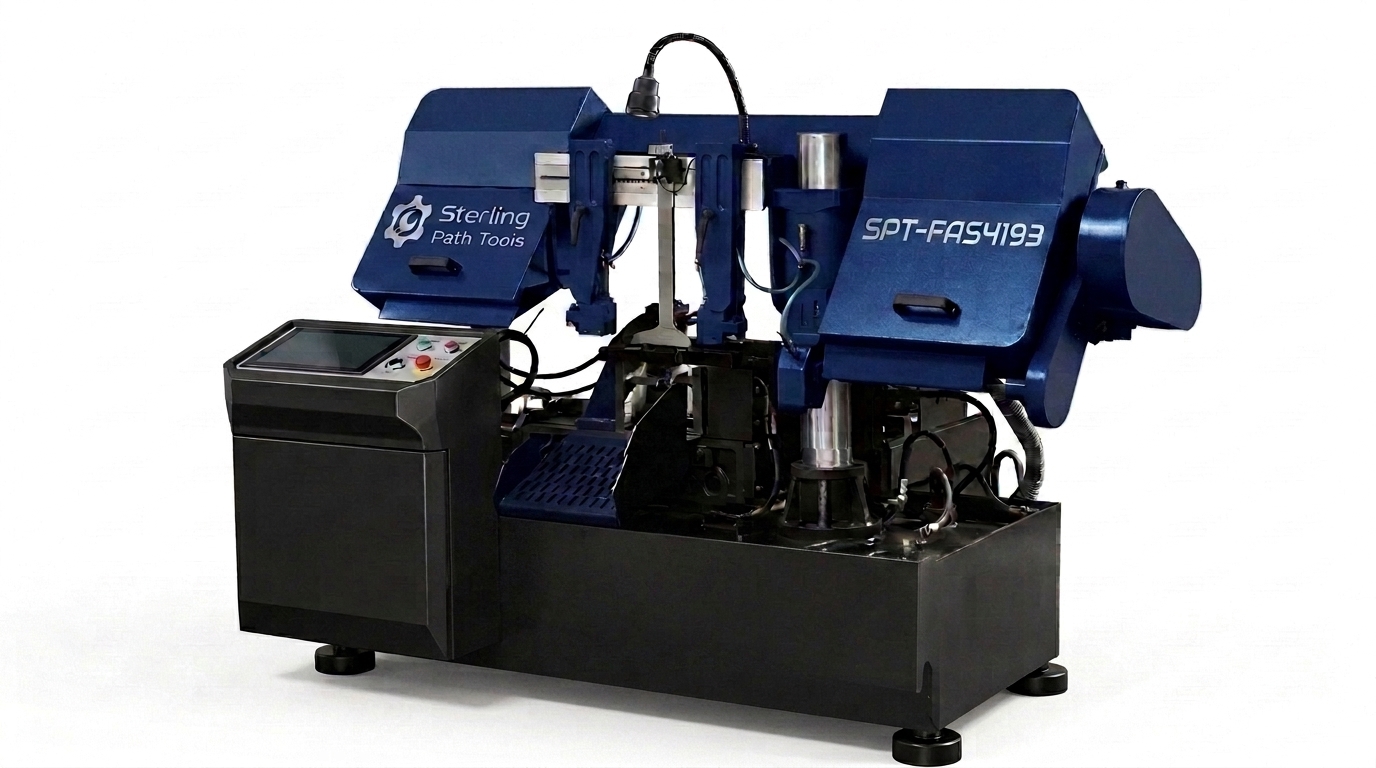

GrandEdge Double-Column Saw
SPT-FAS4193 – GrandEdge Double-Column Saw

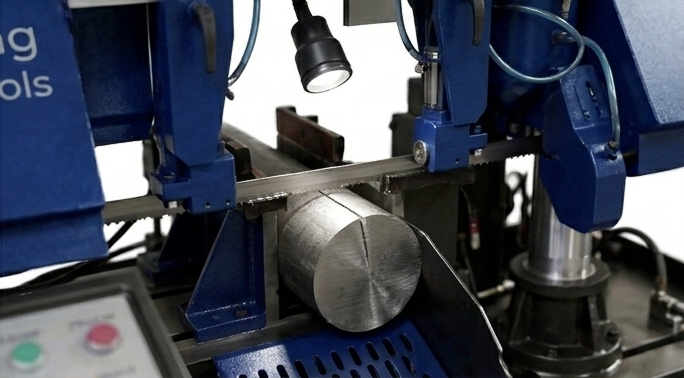

This Horizontal Double-Column Metal Cutting Band Saw is a heavy duty cutting platform built for continuous mass production. Designed to handle solid bars, heavy structural tubes and dense profiles. This machine relies on balanced dual column guidance, dual cylinder hydraulics and a double vise clamping network to deliver precise, parallel cuts with zero material deflection.

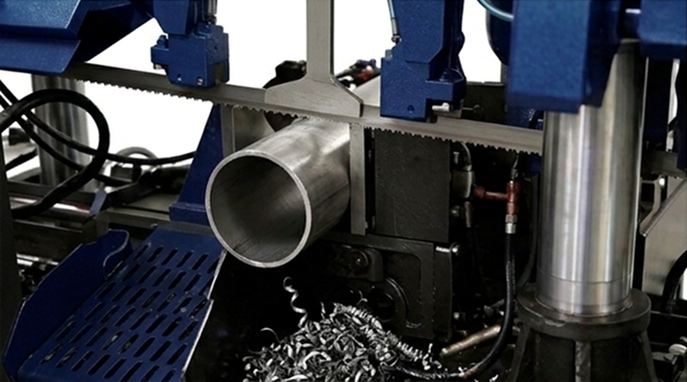

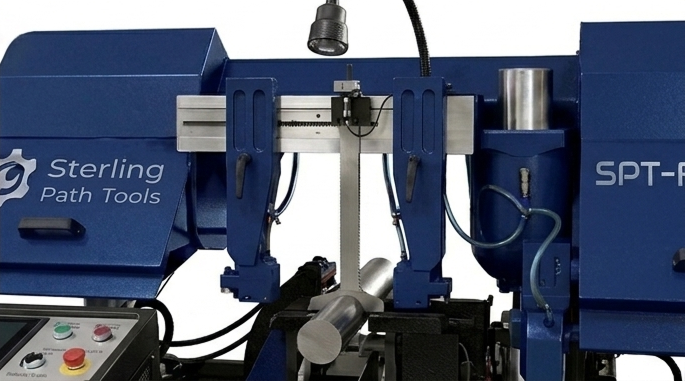

The saw frame rides vertically along two precision-ground, hard-chromed pillars. This dual post configuration distributes the saw’s weight evenly, eliminating frame twisting and blade chatter. The saw frame climbs and descends on two heavy vertical pillars rather than pivoting from a single rear hinge. This keeps the blade perfectly level to prevent twisting or uneven cuts.
Get A Quote
Description
Product Specs:
Max Round Capacity: 325 mm (12.7″)
Blade Speed: 20 to 100 m/min (65 to 330 SFPM)
Blade Length: 4115 mm
Main Motor: 6HP
Hydraulic Pump Motor Power: 0.75 kW (1.0 HP)
Coolant Pump Motor: 0.12 kW (0.16 HP)
Blade Tensioning: Automatic Hydraulic
Vice Clamp: Hydraulic
Blade Thickness: 1.1 mm
Blade Speed Control: Variable Frequency Drive (VFD)
Max Rectangular Capacity: 380 x 325 mm (14.9″x12.7″)
Net Machine Weight: 1,660kg (3,660 lbs)
HMI Interface Hardware: Weintek cMT3072XH3
Total Machine Height: 1,660 mm (65.0″)
Maximum Vise Clamping Force: 3,600 lbs (16.0 kN)
Ambient Working Temperature: +40°C (104°F)
Shipping
Operating Weight (Machine Itself): 1,660 kg (3,660 lbs)
Pallet/Crate Shipping Weight (Gross Boxed Weight):1,810 kg (3,990 lbs) (The extra 150 kg (330 lbs) account for the heavy-duty wood panels, steel-reinforced base palleted frame, packed accessory boxes, and structural steel shipping bands.)
Crate Dimensions (Fully Enclosed Industrial Wooden Box)
Depth (Length):2,350 mm (92.5 inches)
Width:2,500 mm (98.4 inches)
Height:1,800 mm (70.9 inches)
Delivery Method
Standard FTL on a 53-ft flatbed trailer
Transit Time:3-5 business days (default service)
Expedited Option:Next-day available at premium cost
Warranty Policy
Standard Coverage:1-year (or 2,000 operational hours) comprehensive warranty protecting against all defects in factory materials and workmanship.
Extended Protection Program (Optional):We offer an optional extended coverage package that provides up to 2 full years of protection at $2,000 per year. This program specifically covers the high‑pressure hydraulic system (valves, cylinders, and pump) as well as the heavy‑duty powertrain (6 HP motor and enclosed worm‑and‑gear drive)
Additional information
| Main Transmission Gear Type | Heavy-Duty Helical Gear Box (Direct Drive) |
|---|---|
| Working Machine Bed Height | 750 mm (29.5″) |
| Machine Width | 2,400 mm (94.5″) |
| Dual Column Guide Diameter | Φ 85 mm (3.34″) |
| Hydraulic Oil Tank Capacity | 60 Liters (15.8 Gallons) |
| Blade Width | 34 mm (1.33″) |
| Hydraulic Pump Motor Power | 0.75 kW (1.0 HP) |
| Single Feed Index Stroke | 430 mm (16.9″) |
| Max Multi-Indexing Sequence Cuts | 99 repeat loops |
| PLC Memory Job Capacity | 100 unique jobs |
| Machine Length | 2,250 mm (88.6″) |
