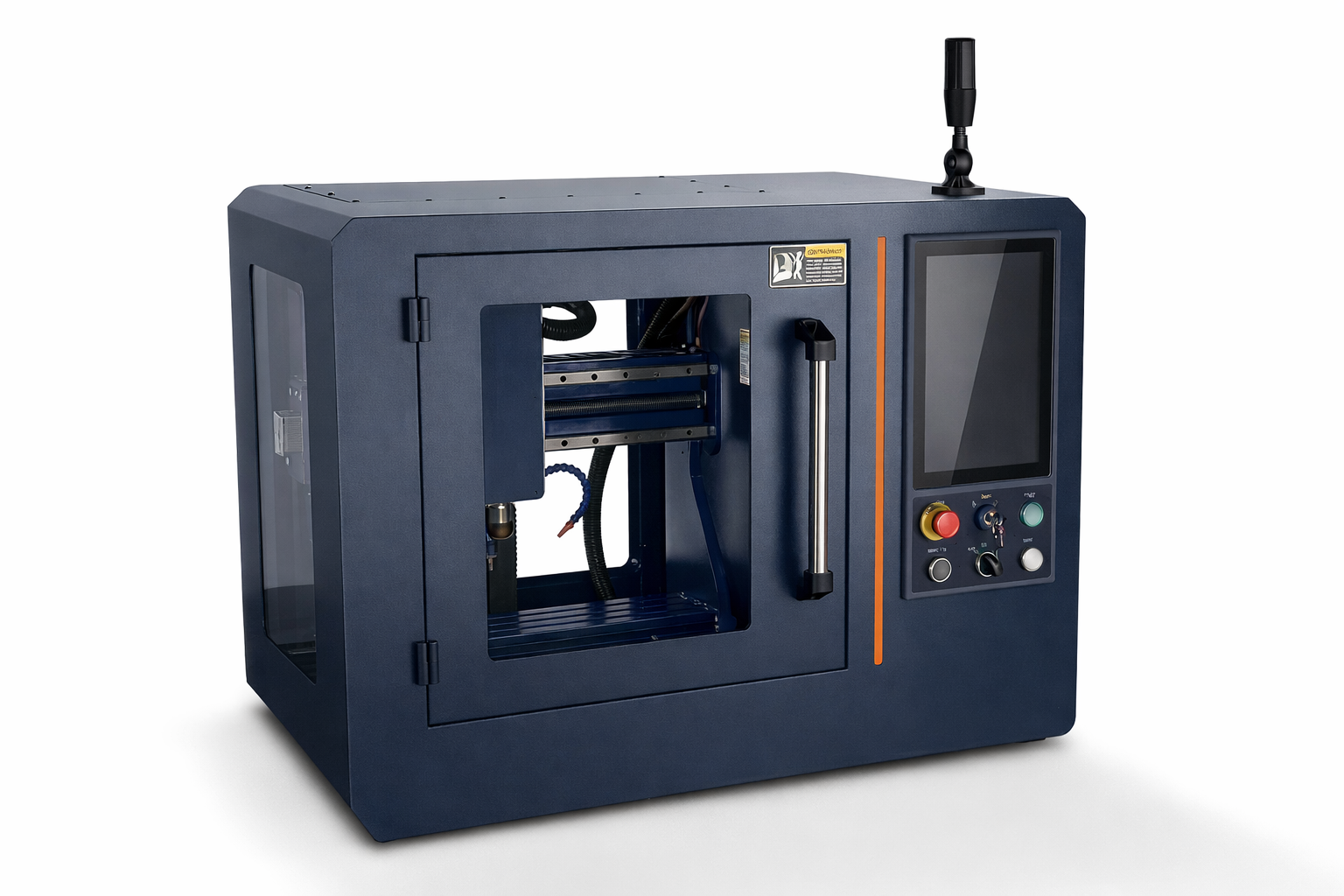

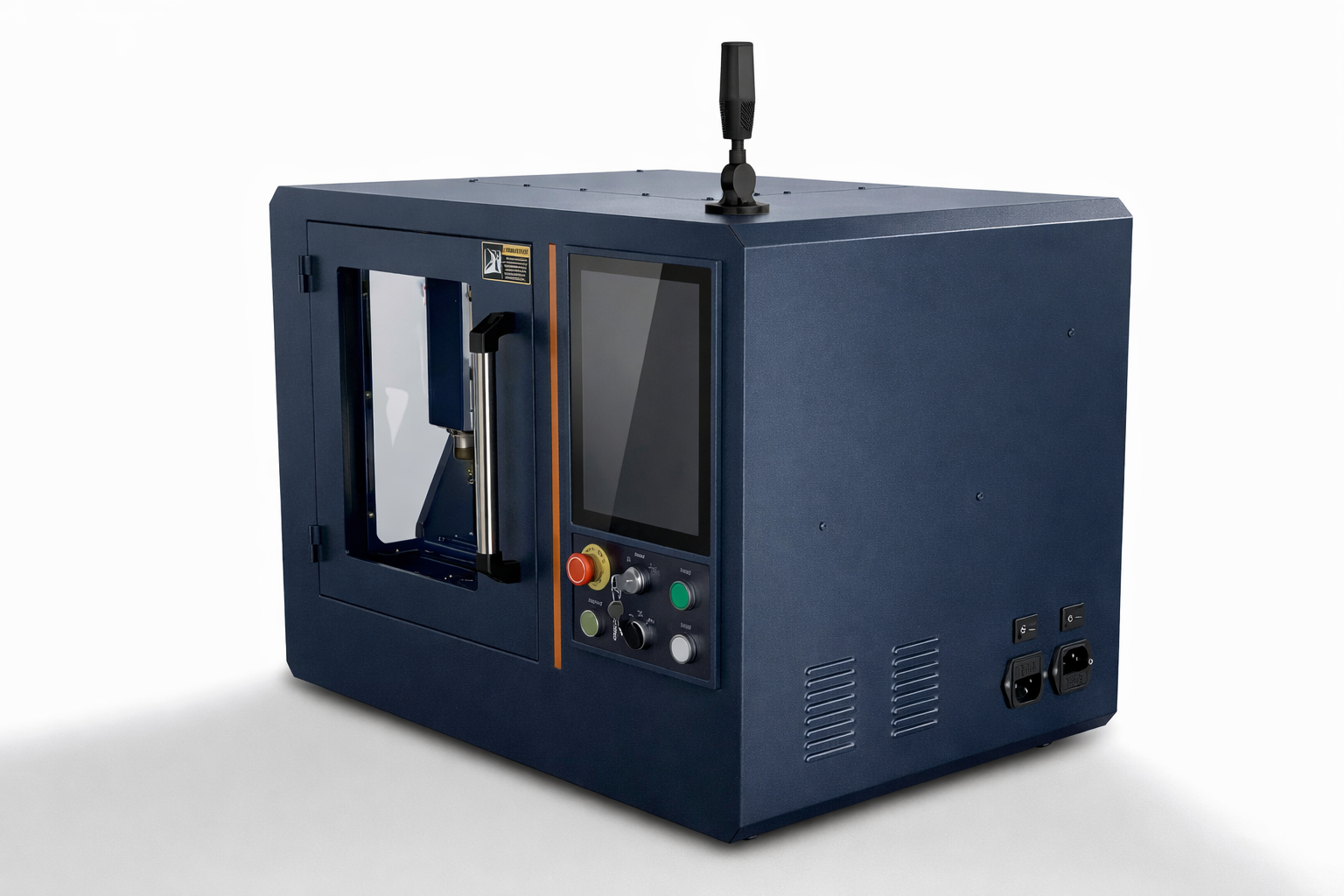

LinearDrive CNC Machine
LinearDrive CNC Machine
Model: SPT-CNC9721
Description:
The LinearDrive CNC Machine is a desktop cnc milling machine with enclosed precision machining system designed for milling, engraving, drilling and light duty manufacturing in small workshops, prototyping labs, educational environments and R&D facilities. Despite its small footprint, it delivers high accuracy through a rigid frame, linear motion components and a computer controlled spindle capable of processing plastics, wood, composites and non‑ferrous metals.
Get A Quote
Description
Product Specification:
Max.Drilling capacity: 15 – 20mm
Max.milling capacity: 12 – 20mm
Max.tapping: M6 – M12

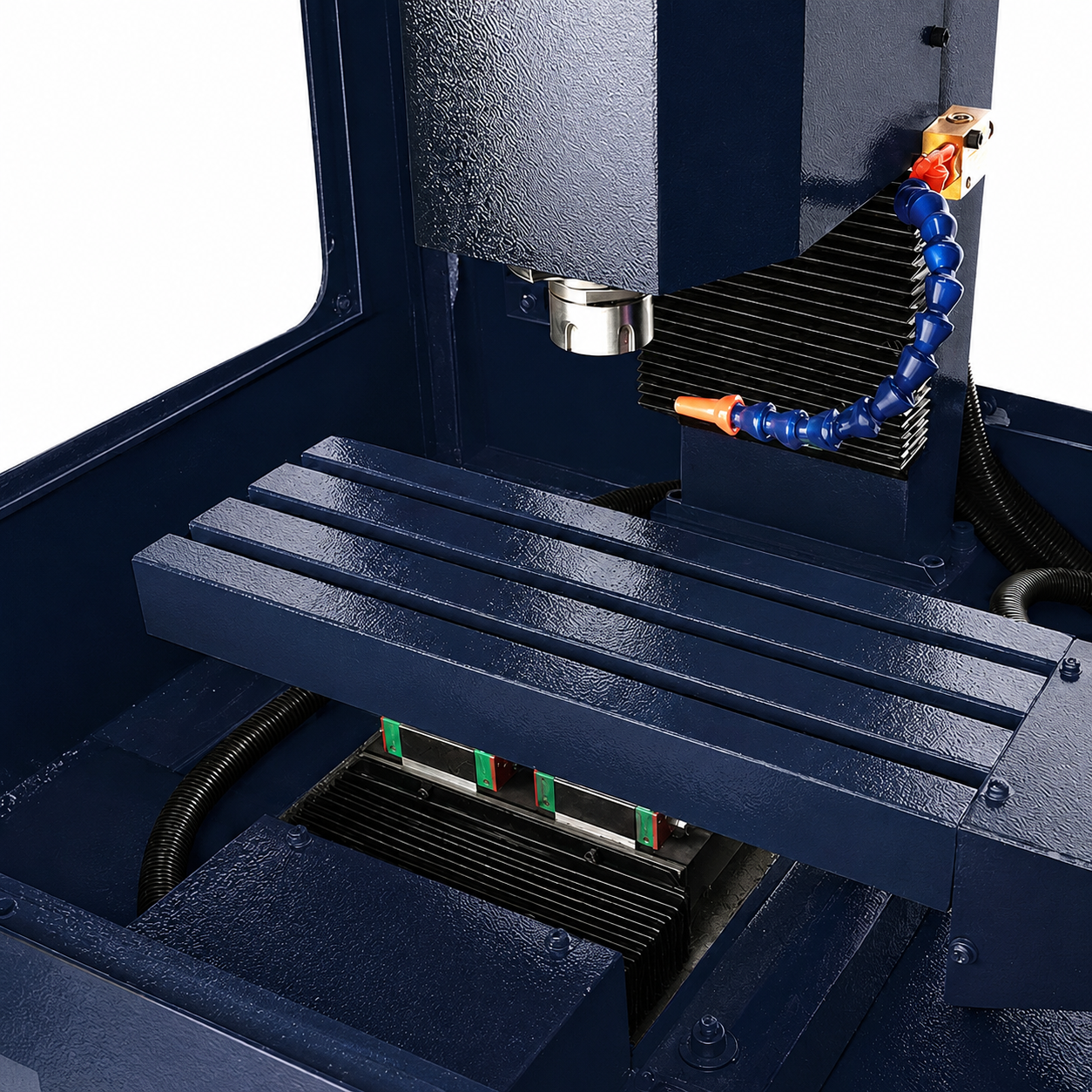

Table size: 400x140mm
T-slots size: 10 – 14mm
Maximum load: 40–60 kg
X spindle travel : 260–300 mm
Y spindle travel: 160–200 mm
Z spindle travel: 180–220 mm
Distance from spindle end to table surface: 50 – 250 mm
Distance from spindle to column guide rail: 120 – 180 mm
Spindle speed range: ~6,000–24,000 RPM (air‑cooled ER‑style spindle visible)
Spindle taper: ER25
Motor: 800 – 1500 W
Additional information
| Main motor power | 1.5 – 3.7KW (2 – 5HP) |
|---|---|
| Table size | 400x140mm |
| Main motor type | Servo 0-10V analog speed control and servo pulse position mode |
| Feed motor torque | 2.0/2.0/3.0（N.M） |
| Work Envelope | 5″×15″ (125 × 380 mm) |
| Feed motor type | Closed loop stepping, Z axis with brake |
| Net weight | 150 – 350 kg |
| Overall dimensions | 1130x646x1530mm |
| Spindle speed | 5,000 – 12,000 RPM |
