Horizontal Metal Cutting Bandsaw
Name: Horizontal Metal Cutting Bandsaw
Model: SPT-BS9381

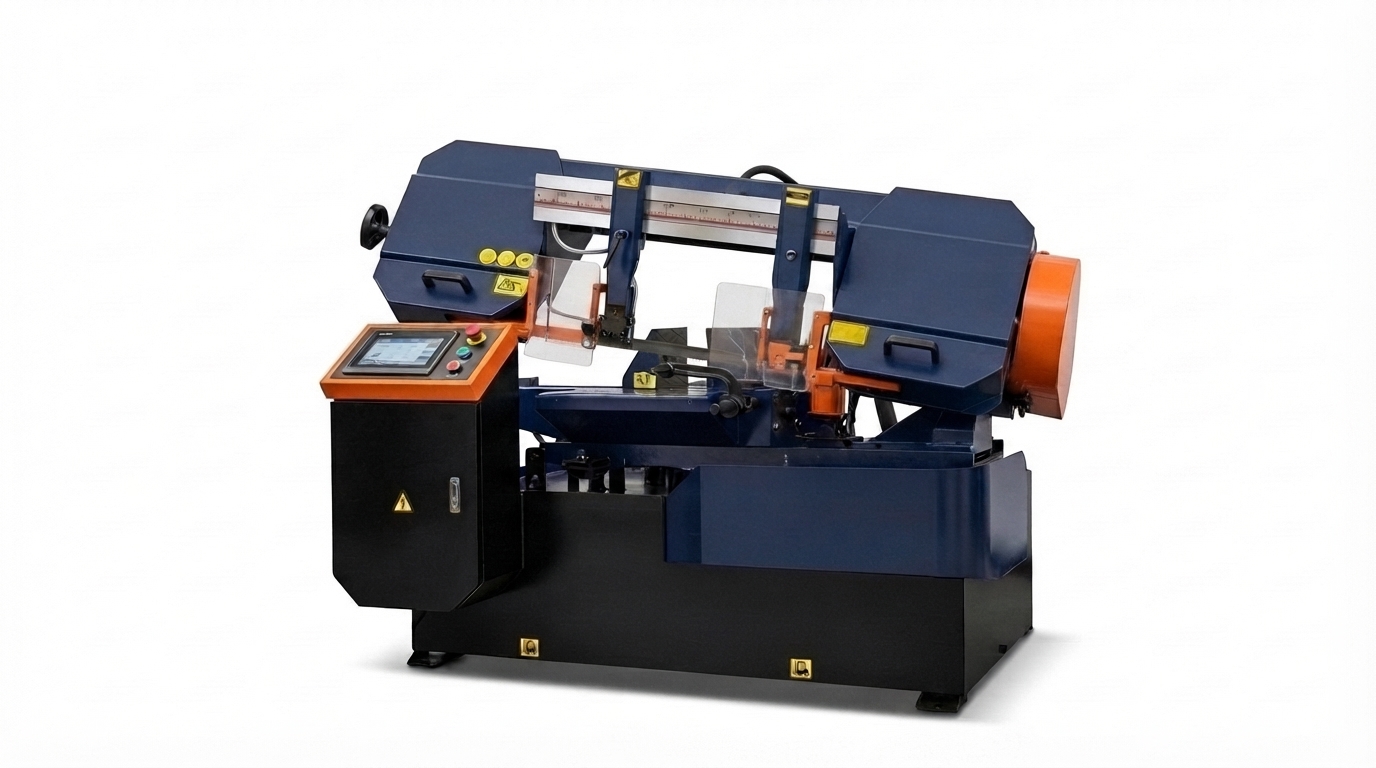

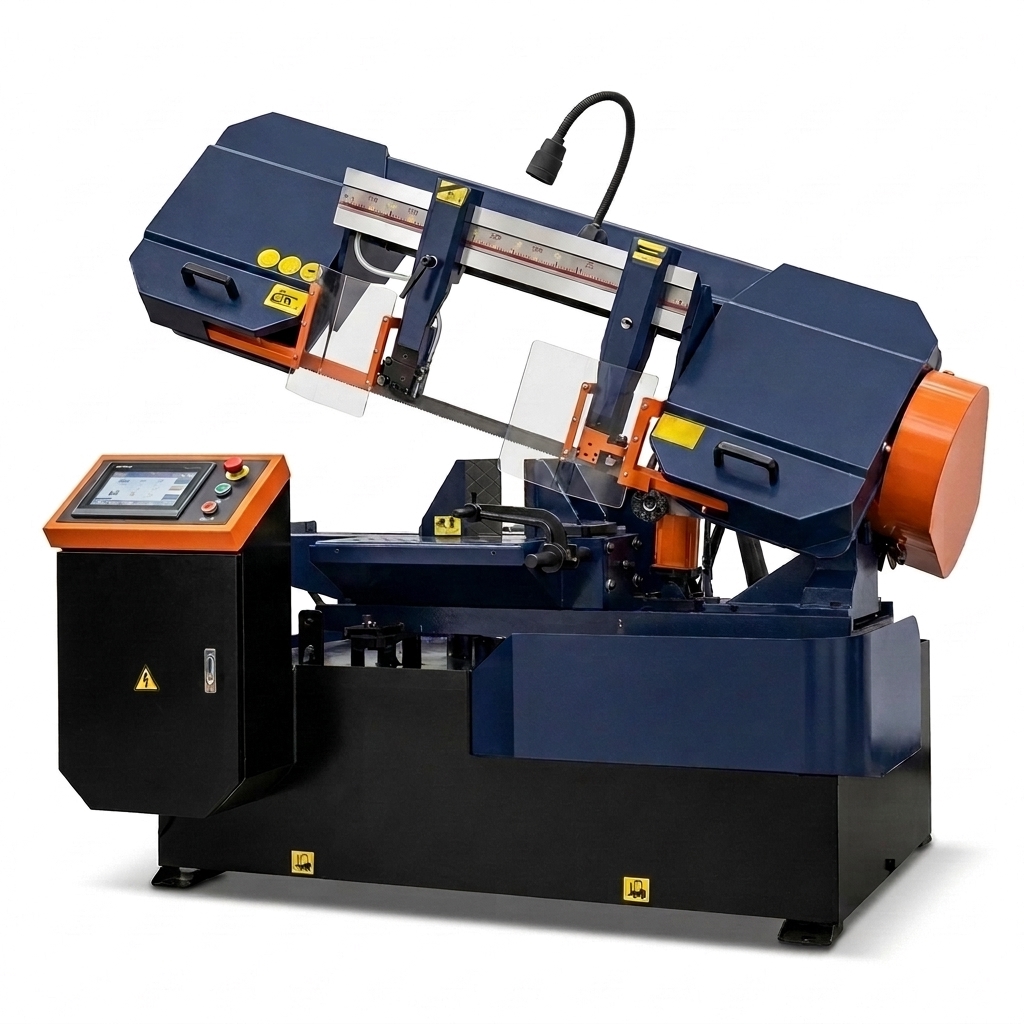

The VectorCut BandSaw is a horizontal metal cutting industrial machine designed for precision cutting of ferrous and non‑ferrous materials, including solid bar, pipe, structural shapes and bundled stock. The saw uses a continuous looped blade driven by an electric motor and guided through a rigid dual‑column or pivot arm frame to ensure straight, accurate cuts.
Get A Quote
Click on the link below to get a quote
Description
Sawing Capacity: 0°: 280mm; 45°: 230*270mm
Saw Blade Linear Speed: 25, 48, 72 m/min
Speed Gears: 3 speed transmission
Feed Adjustment Method: Hydraulic stepless adjustment
Clamping Method: Hydraulic Vise
Vise Structure: Hydraulic with an adjustable front vise guide
Minimum Workpiece Clamping Size: 10mm
Saw Blade Specifications: 34×1.1x3860mm
Band Saw Blade Tensioning Method: Hydraulic
Main Motor Power: 3.0kw (4HP)
Hydraulic Motor Power: 0.75 kW (750w)
Cooling Pump Power: 0.04kw (40w)
Hydraulic System Oil Pressure: 2.5-3.5MPa
Swing Arm Verticality Error: ≤ 0.3 / 100 mm
Additional information
| Parallelism Error | ≤ 0.2 / 100 mm |
|---|---|
| Machine Tool Input Power | AC 380V, 50Hz |
| Total Machine Tool Power | 3.79KW |
| Table Height from Ground | 730mm |
| Hydraulic Oil Tank Volume | 45L |
| Cooling Water Tank Volume | 40L |
| Discharge Method | Manual unload |
| Feeding Method | Manual push |
| External Dimensions | 2200x1460x1800mm |
| Machine Weight | 1,060kg |
